우분투 24.04에서 StorCLI를 설치하는 방법
HPE ProLiant DL360 Gen11 서버에서 우분투 24.04에 StorCLI(Storage Command Line Interface)를 설치하는 방법입니다.
- MegaRAID StorCLI는 Broadcom/LSI MegaRAID 컨트롤러를 관리하기 위한 CLI 도구입니다.
StorCLI 설치

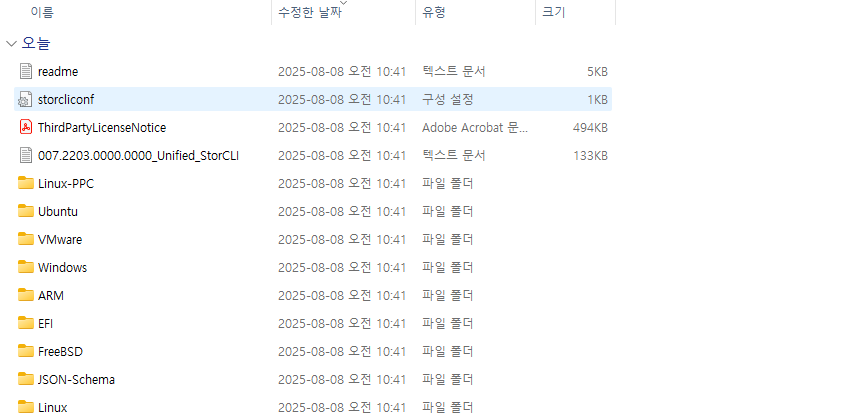

StorCLI 다운로드(007.2203.0000.0000_Unified_StorCLI-PUL.zip)
- Broadcom 공식 사이트에서 StorCLI 최신 버전을 다운로드해야 합니다.
storcli_007.2203.0000.0000_all.deb 파일
007.2203.0000.0000_Unified_StorCLI-PUL\Ubuntu\storcli_007.2203.0000.0000_all.debBroadcom 공식 다운로드 사이트

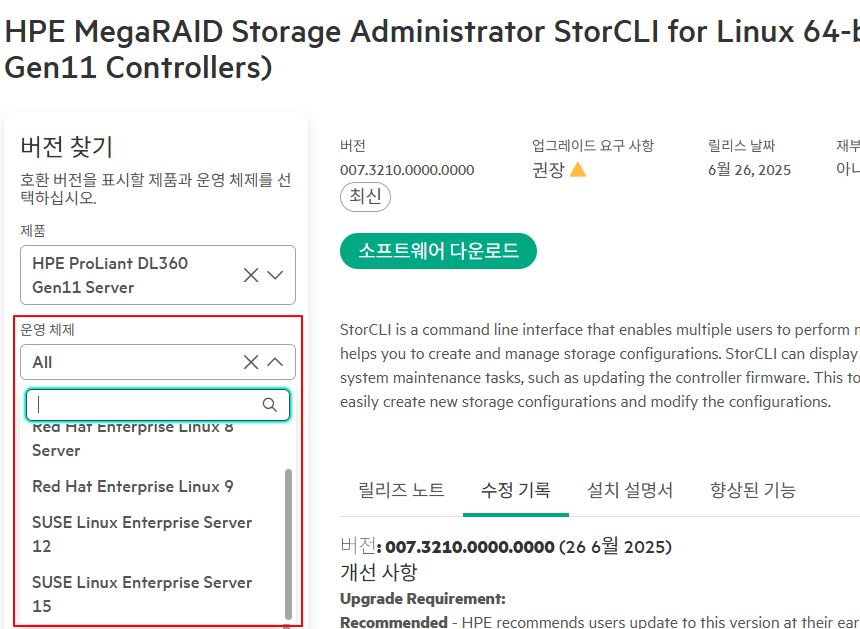

- HPE 지원 페이지(RedHat, SUSE만 지원)
더보기
HPE 지원 페이지
---
HPE 지원 페이지에서는 우분투 운영체제에 대해 공식적으로 지원하지 않습니다.
---
파일 복사
storcli_007.2203.0000.0000_all.debStorCLI 설치
- StorCLI 실행 파일은 보통 /opt/MegaRAID/storcli/storcli64 경로에 설치됩니다.
dpkg -i storcli_007.2203.0000.0000_all.debSelecting previously unselected package storcli.
(Reading database ... 122884 files and directories currently installed.)
Preparing to unpack storcli_007.2203.0000.0000_all.deb ...
Unpacking storcli (007.2203.0000.0000) ...
Setting up storcli (007.2203.0000.0000) ...심볼릭 링크 생성
sudo ln -s /opt/MegaRAID/storcli/storcli64 /usr/local/bin/storclistorcli 설치 확인
storcli -v StorCli SAS Customization Utility Ver 007.2203.0000.0000 May 11, 2022
(c)Copyright 2022, Broadcom Inc. All Rights Reserved.728x90
storcli 명령어
더보기
---
storcli -helpstorcli -v
storcli [verbose] -h| -help| ?
storcli show
storcli show all
storcli show ctrlcount
storcli show file=
storcli /cx add vd r[0|1|5|6|00|10|50|60]
[Size=,,..|remaining] [name=,..]
drives=[e:]s|[e:]s-x|[e:]s-x,y [PDperArray=x][SED]
[pdcache=on|off|default][pi][DimmerSwitch(ds)=default|automatic(auto)|
none|maximum(max)|MaximumWithoutCaching(maxnocache)][WT|WB|AWB][nora|ra]
[direct|cached] [cachevd] [unmap][Strip=<8|16|32|64|128|256|512|1024>]
[AfterVd=X] [EmulationType=0|1|2] [Spares = [e:]s|[e:]s-x|[e:]s-x,y]
[force][ExclusiveAccess] [Cbsize=0|1|2 Cbmode=0|1|2|3|4|7]
storcli /cx add vd each r0 [name=,..] [drives=[e:]s|[e:]s-x|[e:]s-x,y]
[SED] [pdcache=on|off|default][pi] [DimmerSwitch(ds)=default|
automatic(auto)|none|maximum(max)|MaximumWithoutCaching(maxnocache)]
[WT|WB|AWB] [nora|ra] [direct|cached] [EmulationType=0|1|2]
[Strip=<8|16|32|64|128|256|512|1024>] [ExclusiveAccess]
[Cbsize=0|1|2 Cbmode=0|1|2|3|4|7] [unmap]
storcli /cx add VD cachecade r[0|1|10]
drives = [e:]s|[e:]s-x|[e:]s-x,y [WT|WB] [assignvds = 0,1,2]
storcli /cx/ex show
storcli /cx/ex show all
storcli /cx/ex show status [extended]
storcli /cx/ex show phyerrorcounters
storcli /cx/vx del [cachecade] [discardcache] [force]
storcli /cx delete config [force]
storcli /cx delete events
storcli /cx show events [ [type= <sincereboot| sinceshutdown| includedeleted|
latest=x| ccincon vd=<0,1,...>] [filter=<[info],[warning],[critical],[fatal]>]
[file=] [logfile[=filename]] ]
storcli /cx show eventloginfo
storcli /cx delete securitykey
storcli /cx set securitykey < =xxxxxxxx [passphrase=xxxx] [keyid=xxx] [VolatileKey=on|off] | file=filename >
storcli /cx set securitykey < keyid=xxx | file=filename >
storcli /cx compare securitykey <=xxxxxxxxxx | file=filename>
storcli /cx set termlog=on|off|offthisboot
storcli /cx show termlog [type=config|contents] [logfile[=filename]]
storcli /cx delete termlog
storcli /cx set securitykey <=xxxxxxxx oldsecuritykey=xxxxxxxx
[passphrase=xxxx] [keyid=xxx] [VolatileKey=on|off] | file=filename>
storcli /cx set sesmonitoring=on|off
storcli /cx show sesmonitoring
storcli /cx set failpdonsmarterror=on|off
storcli /cx show failpdonsmarterror
storcli /cx/dx show
storcli /cx/dall show cachecade
storcli /cx/dx show all
storcli /cx/dall show mirror
storcli /cx/dall split mirror
storcli /cx/dall add mirror src= [force]
storcli /cx show freespace
storcli /cx/fall show [all] [securityKey = xxx]
storcli /cx/fall del|delete [securityKey = xxx]
storcli /cx/fall import [preview] [securityKey = xxx]
storcli /cx/vx set ssdcaching=on|off
storcli /cx/vx set hidden=on|off
storcli /cx/dx set hidden=on|off
storcli /cx/dx set security=on
storcli /cx/vx show expansion
storcli /cx/vx expand Size= [expandarray]
storcli /cx get vpd file=
storcli /cx[/ex]/sx show
storcli /cx[/ex]/sx show all
storcli /cx[/ex]/sx start rebuild
storcli /cx start diag [duration=]
storcli /cx[/ex]/sx stop rebuild
storcli /cx[/ex]/sx pause rebuild
storcli /cx[/ex]/sx resume rebuild
storcli /cx[/ex]/sx show rebuild
storcli /cx[/ex]/sx show poh [ignoreselftest]
storcli /cx[/ex]/sx show smart
storcli /cx[/ex]/sx start copyback target=e:s
storcli /cx[/ex]/sx stop copyback
storcli /cx[/ex]/sx pause copyback
storcli /cx[/ex]/sx resume copyback
storcli /cx[/ex]/sx reset phyerrorcounters
storcli /cx[/ex]/sx reset errorcounters type = 1|2
storcli /cx[/ex]/sx show copyback
storcli /cx[/ex]/sx show patrolread
storcli /cx[/ex]/sx show phyerrorcounters
storcli /cx[/ex]/sx show errorcounters
storcli /cx[/ex]/sx start initialization
storcli /cx[/ex]/sx stop initialization
storcli /cx[/ex]/sx show initialization
storcli /cx[/ex]/sx start locate
storcli /cx[/ex]/sx stop locate
storcli /cx[/ex]/sx show securitykey keyid
storcli /cx[/ex]/sx add hotsparedrive [DGs=<N|0,1,2...>] [enclaffinity]
storcli /cx[/ex]/sx delete hotsparedrive
storcli /cx[/ex]/sx spinup
storcli /cx[/ex]/sx spindown
storcli /cx[/ex]/sx set online
storcli /cx[/ex]/sx set offline
storcli /cx[/ex]/sx set missing
storcli /cx[/ex]/sx set jbod
storcli /cx[/ex]/sx set security=on
storcli /cx[/ex]/sx set good [force]
storcli /cx[/ex]/sx insert dg=A array=B row=C
storcli /cx/vx set emulationType=0|1|2
storcli /cx/vx set Unmap=<On|Off>
storcli /cx/vx show Unmap
storcli /cx/vx set cbsize=0|1|2 cbmode=0|1|2|3|4|7
storcli /cx/vx set wrcache=WT|WB|AWB
storcli /cx/vx set rdcache=RA|NoRA
storcli /cx/vx set iopolicy=Cached|Direct
storcli /cx/vx set accesspolicy=RW|RO|Blocked|RmvBlkd
storcli /cx/vx set pdcache=On|Off|Default
storcli /cx/vx set name=
storcli /cx/vx set HostAccess=ExclusiveAccess|SharedAccess
storcli /cx/vx set ds=Default|Auto|None|Max|MaxNoCache
storcli /cx/vx set autobgi=On|Off
storcli /cx/vx set pi=Off
storcli /cx/vx show
storcli /cx/vx show all [logfile[=filename]]
storcli /cx/vx show init
storcli /cx/vx show cc
storcli /cx/vx show erase
storcli /cx/vx show migrate
storcli /cx/vx show bgi
storcli /cx/vx show autobgi
storcli /cx set consistencycheck|cc[=off|seq|conc] [delay=value]
[starttime=yyyy/mm/dd hh] [excludevd=x-y,z|none]
storcli /cx show cc|consistencycheck
storcli /cx show ocr
storcli /cx set ocr=<on|off>
storcli /cx show sesmultipathcfg
storcli /cx set sesmultipathcfg=<on|off>
storcli /cx/vx start init [Full] [Force]
storcli /cx/vx start erase [simple|normal|thorough|standard] [patternA=]
[patternB=]
storcli /cx/vx start cc [Force]
storcli /cx/vx start migrate type=raidx [option=add|remove
drives=[e:]s|[e:]s-x|[e:]s-x,y] [Force]
storcli /cx/vx stop init
storcli /cx/vx stop erase
storcli /cx/vx stop cc
storcli /cx/vx stop bgi
storcli /cx/vx pause cc
storcli /cx/vx pause bgi
storcli /cx/vx resume cc
storcli /cx/vx resume bgi
storcli /cx show
storcli /cx show all [logfile[=filename]]
storcli /cx show preservedcache
storcli /cx/vx delete preservedcache [force]
storcli /cx[/ex]/sx download src= [satabridge] [mode= 5|7] [parallel [force]]
storcli /cx[/ex]/sx download status
storcli /cx/ex download src= [ mode=5 | [forceActivate] mode=7] [bufferid=]
storcli /cx/ex download src= mode=e [offline] [forceActivate [delay=]] [bufferid=]
storcli /cx/ex download mode=f [offline] [delay=] [bufferid=]
storcli /cx[/ex]/sx download src= mode= E [offline] [activatenow [delay=] ]
storcli /cx[/ex]/sx download mode= F [offline] [delay=]
storcli /cx[/ex]/sx secureerase [force]
storcli /cx[/ex]/sx start erase [simple| normal| thorough | standard| threepass | crypto]
[patternA=] [patternB=]
storcli /cx[/ex]/sx start sanitize < cryptoerase| blockErase > [ause]
storcli /cx[/ex]/sx start sanitize overwrite [ause] [invert] [overwritecount=]
[ patternA= patternB= patternC= patternD= ]
storcli /cx[/ex]/sx stop erase
storcli /cx[/ex]/sx show erase
storcli /cx[/ex]/sx show sanitize
storcli /cx[/ex]/sx show jbod
storcli /cx[/ex]/sx show jbod all
storcli /cx[/ex]/sx del jbod [force]
storcli /cx[/ex]/sx set bootdrive=<on|off>
storcli /cx/vx set bootdrive=<on|off>
storcli /cx show bootdrive
storcli /cx show bootwithpinnedcache
storcli /cx set bootwithpinnedcache=<on|off>
storcli /cx show activityforlocate
storcli /cx set activityforlocate=<on|off>
storcli /cx show copyback
storcli /cx set copyback=<on|off> type=ctrl|smartssd|smarthdd|all
storcli /cx show jbod
storcli /cx set jbod=<on|off> [force]
storcli /cx set autorebuild=<on|off>
storcli /cx set ldlimit=<default|max>
storcli /cx show autorebuild
storcli /cx set autoconfig [= < none | R0 [immediate] | JBOD > [usecurrent] ]
[[sesmgmt=on|off] [securesed=on|off]
[multipath=on|off] [multiinit=on|off]
[discardpinnedcache=] [failPDOnReadME=on|off]
[Lowlatency=low|off]]
storcli /cx show autoconfig
storcli /cx show cachebypass
storcli /cx set cachebypass=<on|off>
storcli /cx show usefdeonlyencrypt
storcli /cx set usefdeonlyencrypt=<on|off>
storcli /cx show prcorrectunconfiguredareas
storcli /cx set prcorrectunconfiguredareas=<on|off>
storcli /cx show batterywarning
storcli /cx set batterywarning=<on|off>
storcli /cx show abortcconerror
storcli /cx set abortcconerror=<on|off>
storcli /cx show ncq
storcli /cx show configautobalance
storcli /cx set ncq=<on|off>
storcli /cx set configautobalance=<on|off>
storcli /cx show maintainpdfailhistory
storcli /cx set maintainpdfailhistory=<on|off>
storcli /cx show restorehotspare
storcli /cx set restorehotspare=<on|off>
storcli /cx set bios [state=<on|off>] [Mode=<SOE|PE|IE|SME>] [abs=<on|off>]
[DeviceExposure=]
storcli /cx show bios
storcli /cx show alarm
storcli /cx set alarm=<on|off|silence>
storcli /cx show deviceorderbyfirmware
storcli /cx set deviceorderbyfirmware=<on|off>
storcli /cx show foreignautoimport
storcli /cx set foreignautoimport=<on|off>
storcli /cx show directpdmapping
storcli /cx set directpdmapping=<on|off>
storcli /cx show rebuildrate
storcli /cx set rebuildrate=
storcli /cx show loadbalancemode
storcli /cx set loadbalancemode=<on|off>
storcli /cx show eghs
storcli /cx set eghs [state=<on|off>] [eug=<on|off>] [smarter=<on|off>]
storcli /cx show cacheflushint
storcli /cx set cacheflushint=
storcli /cx show prrate
storcli /cx set prrate=
storcli /cx show ccrate
storcli /cx set ccrate=
storcli /cx show bgirate
storcli /cx set bgirate =
storcli /cx show dpm
storcli /cx start dpm
storcli /cx stop dpm
storcli /cx[/ex]/sx show dpmstat type = HIST | LCT | RA | EXT [logfile[=filename]]
storcli /cx delete dpmstat type = Hist | LCT | RA | EXT | All
storcli /cx show sgpioforce
storcli /cx set sgpioforce =<on|off>
storcli /cx set supportssdpatrolread =<on|off>
storcli /cx show reconrate
storcli /cx set reconrate=
storcli /cx show spinupdrivecount
storcli /cx show wbsupport
storcli /cx set spinupdrivecount=
storcli /cx show spinupdelay
storcli /cx set spinupdelay=
storcli /cx show coercion
storcli /cx set coercion=
storcli /cx show limitMaxRateSATA
storcli /cx set limitMaxRateSATA=on|off
storcli /cx show HDDThermalPollInterval
storcli /cx set HDDThermalPollInterval=
storcli /cx show SSDThermalPollInterval
storcli /cx set SSDThermalPollInterval=
storcli /cx show smartpollinterval
storcli /cx set smartpollinterval=
storcli /cx show eccbucketsize
storcli /cx set eccbucketsize=
storcli /cx show eccbucketleakrate
storcli /cx set eccbucketleakrate=
storcli /cx show backplane
storcli /cx set backplane mode= expose=<on|off>
storcli /cx show perfmode
storcli /cx set perfmode= [maxflushlines= numiostoorder=]
storcli /cx show perfmodevalues
storcli /cx show pi
storcli /cx set pi [state=<on|off>] [import=<on|off>]
storcli /cx show time
storcli /cx set time=
storcli /cx show ds
storcli /cx set ds=OFF type=1|2|3|4
storcli /cx set ds=ON type=1|2 [properties]
storcli /cx set ds=ON type=3|4 DefaultLdType= [properties]
storcli /cx set ds [properties]
storcli /cx show safeid
storcli /cx show rehostinfo
storcli /cx show pci
storcli /cx show ASO
storcli /cx set aso key= preview
storcli /cx set aso key=
storcli /cx set aso transfertovault
storcli /cx set aso rehostcomplete
storcli /cx set aso deactivatetrialkey
storcli /cx set factory defaults
storcli /cx download file= [noverchk] [noreset] [forcehcb]
storcli /cx download file= [fwtype=] [ResetNow] [nosigchk]
[noverchk] [force] [forceclose]
storcli /cx flushcache
storcli /cx set sbr
storcli /cx/px show
storcli /cx/px show phyerrorcounters
storcli /cx/px show all
storcli /cx/lnx show
storcli /cx show linkconfig
storcli /cx set linkconfig [conname=cx,cy] configid=
storcli /cx/px set linkspeed=0|1.5|3|6|12
storcli /cx/px set state=on|off
storcli /cx/px reset [hard]
storcli /cx/lnx set lanespeed=0|2.5|5|8|16
storcli /cx/bbu show
storcli /cx/bbu show all
storcli /cx/bbu show status
storcli /cx/bbu show properties
storcli /cx/bbu show learn
storcli /cx/bbu show gasgauge Offset=xxxx Numbytes=n
storcli /cx/bbu start learn
storcli /cx/bbu show modes
storcli /cx/bbu set [ learnDelayInterval= | bbuMode=
|learnStartTime=[DDD HH | off] | autolearnmode= |
powermode=sleep | writeaccess=sealed ]
storcli /cx/cv show
storcli /cx/cv show all
storcli /cx/cv show status
storcli /cx/cv show learn
storcli /cx/cv start learn
storcli /cx show securitykey keyid
storcli /cx start patrolread
storcli /cx stop patrolread
storcli /cx pause patrolread
storcli /cx resume patrolread
storcli /cx show patrolRead
storcli /cx show powermonitoringinfo
storcli /cx show ldlimit
storcli /cx set patrolread [=[[on mode=<auto|manual> ]| off]]
| [starttime=< yyyy/mm/dd hh>]
| [maxconcurrentpd =]
| [includessds=<on|onlymixed|off>]
| [uncfgareas=on|off]
| [excludevd=x-y,z|none]
| [delay = ]
storcli /cx show badblocks
storcli /cx flasherase
storcli /cx transform iMR
storcli /cx restart
storcli /cx/vx show BBMT
storcli /cx/vx delete BBMT
storcli /cx show dequeuelog file=
storcli /cx show maintenance
storcli /cx set maintenance mode=normal|nodevices
storcli /cx show personality
storcli /cx set personality=RAID|HBA|JBOD
storcli /cx show profile
storcli /cx set profile profileid=
storcli /cx show jbodwritecache
storcli /cx set jbodwritecache=on|off|default
storcli /cx show immediateio
storcli /cx show driveactivityled
storcli /cx set immediateio=<on|off>
storcli /cx show largeiosupport
storcli /cx set largeiosupport=<on|off>
storcli /cx show unmap
storcli /cx set unmap=<on|off>
storcli /cx set driveactivityled=<on|off>
storcli /cx show pdfailevents [lastoneday] [lastseqnum=] [file=]
storcli /cx show pdfaileventoptions
storcli /cx set pdfaileventoptions [detectionType=] [correctiveaction=] [errorThreshold=]
storcli /cx set assemblynumber= xxxx
storcli /cx show aliLog [logfile[=filename]]
storcli /cx get config file=
storcli /cx set config file=
storcli /cx show flushwriteverify
storcli /cx set flushwriteverify=<on|off>
storcli /cx/dx set transport=on|off [EDHSP=on|off] [SDHSP=on|off]
storcli /cx show largeQD
storcli /cx set largeQD=<on|off>
storcli /cx set debug type= option= [level=]
storcli /cx set debug reset all
storcli /cx show assemblynumber
storcli /cx set tracernumber= xxxx
storcli /cx show tracernumber
storcli /cx show boardname
storcli /cx set sasadd = xxxx [devicename] [methodport]
storcli /cx set sasaddhi = xxxx sasaddlow = xxxxx [devicename] [methodport]
storcli /cx show sasadd
storcli /cx/px compare linkspeed=
storcli /cx set updatevpd file=
storcli /cx show vpd
storcli /cx erase nvsram
storcli /cx erase fwbackup
storcli /cx erase bootservices
storcli /cx erase all [excludemfg] [file=filename]
storcli /cx erase perconfpage
storcli /cx erase mpb
storcli /cx download efibios file=
storcli /cx download cpld file=
storcli /cx download psoc file=
storcli /cx download bios file=
storcli /cx download fcode file=
storcli /cx compare bios ver =
storcli /cx compare fwprodid ver =
storcli /cx compare ssid ver =
storcli /cx compare firmware ver =
storcli /cx get bios file=
storcli /cx get firmware file=
storcli /cx get mpb file=
storcli /cx get fwbackup file=
storcli /cx get nvdata file=
storcli /cx get flash file=
storcli /cx set oob mode=i2c|pcie maxpayloadsize= maxpacketsize= [spdm=on|off] [pldm=on|off]
storcli /cx show oob
storcli /cx show snapdump
storcli /cx set snapdump state=on|off
storcli /cx set snapdump [ savecount= | delayocr= | preboottrace=<on|off> ]
storcli /cx get snapdump [ id=[ all | file=] ] [norttdump]
storcli /cx delete snapdump [force]
storcli /cx show htbparams
storcli /cx set htbparams=off
storcli /cx set htbparams [= on] maxsize= minsize= decrementsize=
storcli /cx show failedNvmeDevices
storcli /cx[/ex]/sx show repair
storcli /cx[/ex]/sx start repair [force]
storcli /cx[/ex]/sx stop repair
storcli /cx show security spdm slotgroup=xx slot=yy
storcli /cx export security spdm slotgroup=xx slot=yy subject=subjectfile file=filename
storcli /cx import security spdm slotgroup=xx slot=yy file=filename [seal]
storcli /cx set security spdm slotgroup=xx slot=yy invalidate [force]
storcli /cx get security spdm slotgroup=xx slot=yy file=filename
storcli /cx show parityreadcachebypass
storcli /cx set parityreadcachebypass=<on|off>
storcli /cx show temperature
Note:
1. Use 'page[=x]'as the last option in all the commands to set the page break.
X=lines per page. E.g. 'storcli help page=10'
2. Use 'nolog' option to disable debug logging. E.g. 'storcli show nolog'---
StorCLI 명령어 예시
RAID 컨트롤러 상태 확인
sudo storcli /c0 show더보기
---
...
TOPOLOGY :
========
------------------------------------------------------------------------------
DG Arr Row EID:Slot DID Type State BT Size PDC PI SED DS3 FSpace TR
------------------------------------------------------------------------------
0 - - - - RAID1 Optl N 893.750 GiB dflt N N none N N
0 0 - - - RAID1 Optl N 893.750 GiB dflt N N none N N
0 0 0 252:1 0 DRIVE Onln N 960.00 GB dflt N N none - N
0 0 1 252:2 1 DRIVE Onln N 960.00 GB dflt N N none - N
------------------------------------------------------------------------------
DG=Array|VD=Logical Drive|Slot=Drive Bay No|Span=Span Index|Row=Row Index|EID=Enclosure Device ID
DID=Device ID|Type=Physical Drive Type|Onln=Online|Rbld=Rebuild|Optl=Optimal|Dgrd=Degraded
Pdgd=Partially degraded|Offln=Offline|BT=Background Task Active
PDC=Drive Cache|PI=Data Integrity Info|SED=Self Encrypting Drive|Frgn=Foreign
DS3=Dimmer Switch 3|dflt=Default|Msng=Missing|FSpace=Free Space Present
TR=Transport Ready
Virtual Drives = 1
VD LIST :
=======
----------------------------------------------------------------
DG/VD TYPE State Access Consist Cache Cac sCC Size Name
----------------------------------------------------------------
0/239 RAID1 Optl RW No NRWBD - ON 893.750 GiB
----------------------------------------------------------------
DG=Arrays|VD=Virtual Drive/Logical Drive|Rec=Recovery
Cac=CacheCade|OfLn=OffLine|Pdgd=Partially Degraded|Dgrd=Degraded
Optl=Optimal|dflt=Default|RO=Read Only|RW=Read Write|HD=Hidden|TRANS=TransportReady
B=Blocked|Consist=Consistent|R=Read Ahead Always|NR=No Read Ahead|WB=WriteBack
AWB=Always WriteBack|WT=WriteThrough|C=Cached IO|D=Direct IO|sCC=Scheduled
Check Consistency
Physical Drives = 2
Drive LIST :
==========
--------------------------------------------------------------------------
EID:Slt DID State DG Size Intf Med SED PI SeSz Model Sp Type
--------------------------------------------------------------------------
252:1 0 Onln 0 960.00 GB SATA SSD N N 512B MK000960GXAXB U -
252:2 1 Onln 0 960.00 GB SATA SSD N N 512B MK000960GXAXB U -
--------------------------------------------------------------------------
EID=Enclosure Device ID|Slt=Drive Bay No|DID=Device ID|DG=Arrays
DHS=Dedicated Spare Drive|UGood=Unconfigured Good|GHS=Global Spare Drive
UBad=Unconfigured Bad|Sntze=Sanitize|Onln=Online|Offln=Offline|Intf=Interface
Med=Media Type|SED=Self Encryptive Drive|PI=Data Integrity Info
SeSz=Sector Size|Sp=Spun|U=Up|D=Down|T=Transition|F=Foreign
UGUnsp=UGood Unsupported|UGShld=UGood shielded|HSPShld=Spare shielded
CFShld=Configured shielded|Cpybck=CopyBack|CBShld=Copyback Shielded
UBUnsp=UBad Unsupported|Rbld=Rebuild
Enclosures = 1
Enclosure LIST :
==============
--------------------------------------------------------------------------------
EID State Slots PD PS Fans TSs Alms SIM Port# ProdID VendorSpecific
--------------------------------------------------------------------------------
252 OK 8 2 0 0 0 0 0 Port 1I /SAS UBM6 BC BP
--------------------------------------------------------------------------------
Slot=Bay Count | SlotBP=Bays On Port | EID=Enclosure Device ID
PD=Drive Count | PS=Power Supply Count| SIM=SIM Count
TSs=Temperature Sensor Count | Alms=Alarm Count | ProdID=Product ID---
물리적 드라이브(PD) 상태 확인
sudo storcli /c0/eall/sall showDrive Information :
=================
--------------------------------------------------------------------------
EID:Slt DID State DG Size Intf Med SED PI SeSz Model Sp Type
--------------------------------------------------------------------------
252:1 0 Onln 0 960.00 GB SATA SSD N N 512B MK000960GXAXB U -
252:2 1 Onln 0 960.00 GB SATA SSD N N 512B MK000960GXAXB U -
--------------------------------------------------------------------------모든 가상 드라이브 목록 확인
sudo storcli /c0/vall show가상 디스크(vDisk) 상태 확인
sudo storcli /c0/v239 showVirtual Drives :
==============
----------------------------------------------------------------
DG/VD TYPE State Access Consist Cache Cac sCC Size Name
----------------------------------------------------------------
0/239 RAID1 Optl RW No NRWBD - ON 893.750 GiB
----------------------------------------------------------------물리적 드라이브 정보 상세 확인
- 252:1 슬롯 SSD 상세 정보
sudo storcli /c0/e252/s1 show allRAID 상태 모니터링
- 이벤트 로그 확인
sudo storcli /c0 show events
참고URL
- BROADCOM Downloads : storcli
- HPE 공식적 페이지 : storcli
- Github : StorCLI Documentation
Storcli 문서
728x90
반응형
