우분투 24.04에서 3대의 노드를 사용하여 Consul 백엔드 기반의 Vault HA 클러스터를 구성하는 방법

우분투 24.04 환경에서 3대의 노드를 사용하여 Consul을 Storage Backend로 사용하는 Vault HA 클러스터를 구성하는 방법입니다. Consul은 데이터 저장소 및 HA 조정 역할을 수행하고 Vault는 Active/Standby 구조로 동작합니다.

테스트 환경

호스트 이름 아이피 주소 운영체제 정보 비고
node141 192.168.0.141 우분투 24.04
node142 192.168.0.142 우분투 24.04
node143 192.168.0.143 우분투 24.04

아키텍처

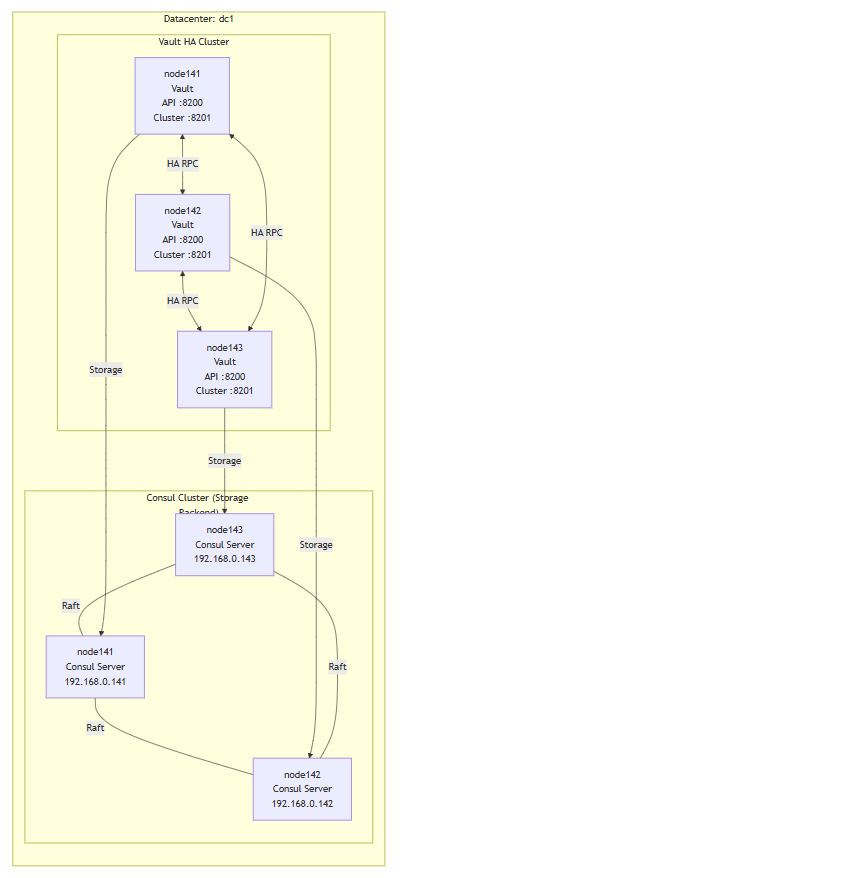

Mermaid 다이어그램

1. 사전 준비(모든 노드)

시스템 업데이트

sudo apt update

필수 패키지 설치

sudo apt install -y wget curl unzip jq

/etc/hosts 설정

sudo tee -a /etc/hosts << EOF
192.168.0.141 node141
192.168.0.142 node142
192.168.0.143 node143
EOF

2. Consul 클러스터 구성(Storage Layer)

Consul 설치 (모든 노드)

# Consul 다운로드
CONSUL_VERSION="1.22.3"
wget https://releases.hashicorp.com/consul/${CONSUL_VERSION}/consul_${CONSUL_VERSION}_linux_amd64.zip
#wget https://releases.hashicorp.com/consul/1.22.3/consul_1.22.3_linux_amd64.zip

# 압축 해제 및 설치
unzip consul_${CONSUL_VERSION}_linux_amd64.zip
sudo mv consul /usr/local/bin/
sudo chmod +x /usr/local/bin/consul
sudo consul --version

Consul 사용자 및 디렉토리 생성

sudo useradd --system --home /etc/consul.d --shell /bin/false consul
sudo mkdir -p /opt/consul /etc/consul.d /var/log/consul
sudo chown -R consul:consul /opt/consul /etc/consul.d /var/log/consul

Consul Gossip 암호화 키 생성(node141)

암호화 키 생성

consul keygen
KL0TfkyzjCKs04Ft3ppEJfEOEYJcdBr6IcL55FZFrOk=
  • 생성된 키를 복사해두고 모든 노드의 설정에 사용합니다.

Consul 설정 파일 생성(모든 노드)

/etc/consul.d/consul.hcl 파일

sudo tee /etc/consul.d/consul.hcl << 'EOF'
datacenter = "dc1"
node_name  = "node141"
encrypt = "YOUR_ENCRYPTION_KEY_HERE"

server = true
bootstrap_expect = 3

bind_addr = "192.168.0.141"
client_addr = "0.0.0.0"

data_dir = "/opt/consul"

log_level = "INFO"
log_file  = "/var/log/consul/consul.log"

retry_join = [
  "192.168.0.141",
  "192.168.0.142",
  "192.168.0.143"
]

ui_config {
  enabled = true
}

performance {
  raft_multiplier = 1
}
EOF

node141

sed -i 's/^encrypt\s*=\s*".*"/encrypt = "KL0TfkyzjCKs04Ft3ppEJfEOEYJcdBr6IcL55FZFrOk="/' /etc/consul.d/consul.hcl

node142

sed -i \
  -e 's/^node_name\s*=\s*"node141"/node_name = "node142"/' \
  -e 's/^encrypt\s*=\s*".*"/encrypt = "KL0TfkyzjCKs04Ft3ppEJfEOEYJcdBr6IcL55FZFrOk="/' \
  -e 's/^bind_addr\s*=\s*"192\.168\.0\.141"/bind_addr = "192.168.0.142"/' \
  /etc/consul.d/consul.hcl

node143

sed -i \
  -e 's/^node_name\s*=\s*"node141"/node_name = "node143"/' \
  -e 's/^encrypt\s*=\s*".*"/encrypt = "KL0TfkyzjCKs04Ft3ppEJfEOEYJcdBr6IcL55FZFrOk="/' \
  -e 's/^bind_addr\s*=\s*"192\.168\.0\.141"/bind_addr = "192.168.0.143"/' \
  /etc/consul.d/consul.hcl

파일 권한 설정(모든 노드)

sudo chown -R consul:consul /etc/consul.d
sudo chmod 640 /etc/consul.d/consul.hcl

Consul 설정 검증(유효성 검사)

sudo consul validate /etc/consul.d/

서비스 등록(모든 노드)

systemd 서비스 생성

sudo tee /etc/systemd/system/consul.service << 'EOF'
[Unit]
Description=Consul
Documentation=https://www.consul.io/
Requires=network-online.target
After=network-online.target

[Service]
User=consul
Group=consul
ExecStart=/usr/local/bin/consul agent -config-dir=/etc/consul.d/
ExecReload=/bin/kill --signal HUP $MAINPID
KillMode=process
KillSignal=SIGTERM
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

Consul 서비스 시작 및 활성화

sudo systemctl daemon-reload
sudo systemctl --now enable consul

상태 확인

Consul 서비스 상태

sudo systemctl status consul

Consul 클러스터 상태 확인

consul members
Node     Address             Status  Type    Build   Protocol  DC   Partition  Segment
node141  192.168.0.141:8301  alive   server  1.22.3  2         dc1  default    <all>
node142  192.168.0.142:8301  alive   server  1.22.3  2         dc1  default    <all>
node143  192.168.0.143:8301  alive   server  1.22.3  2         dc1  default    <all>
consul operator raft list-peers
Node     ID                                    Address             State     Voter  RaftProtocol  Commit Index  Trails Leader By
node141  ade7a77e-1782-e1ee-ff3d-8b427f64c765  192.168.0.141:8300  leader    true   3             1256          -
node142  914d1027-ae17-d57f-ec40-ac209add7b39  192.168.0.142:8300  follower  true   3             1256          0 commits
node143  ea1ca0bb-6ad8-f2f4-109a-7d0d80ad1a71  192.168.0.143:8300  follower  true   3             1256          0 commits
728x90

3. Vault HA 클러스터 구성(Application Layer)

Vault 설치(모든 노드)

# Vault 다운로드
VAULT_VERSION="1.21.3"
wget https://releases.hashicorp.com/vault/${VAULT_VERSION}/vault_${VAULT_VERSION}_linux_amd64.zip
#wget https://releases.hashicorp.com/vault/1.21.3/vault_1.21.3_linux_amd64.zip

# 압축 해제 및 설치
unzip vault_${VAULT_VERSION}_linux_amd64.zip
sudo mv vault /usr/local/bin/
sudo chmod +x /usr/local/bin/vault
sudo vault version

Vault 사용자 및 디렉토리 생성

sudo useradd --system --home /etc/vault.d --shell /bin/false vault
sudo mkdir -p /opt/vault /etc/vault.d /var/log/vault
sudo chown -R vault:vault /opt/vault /etc/vault.d /var/log/vault
sudo chmod 750 /var/log/vault

Vault 서버에 TLS 설정(모든 노드)

자체 서명 인증서 생성(테스트용)

sudo mkdir -p /opt/vault/tls

OpenSSL 설정 파일 생성

  • node141
sudo tee /opt/vault/tls/openssl.cnf << 'EOF'
[req]
default_bits = 4096
distinguished_name = req_distinguished_name
req_extensions = v3_req
prompt = no

[req_distinguished_name]
C = KR
ST = Incheon
L = Incheon
O = Vault
CN = vault.local

[v3_req]
keyUsage = keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1 = vault.local
DNS.2 = node141
DNS.3 = localhost
IP.1 = 192.168.0.141
IP.2 = 127.0.0.1
EOF
  • node142
더보기

---

sudo tee /opt/vault/tls/openssl.cnf << 'EOF'
[req]
default_bits = 4096
distinguished_name = req_distinguished_name
req_extensions = v3_req
prompt = no

[req_distinguished_name]
C = KR
ST = Incheon
L = Incheon
O = Vault
CN = vault.local

[v3_req]
keyUsage = keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1 = vault.local
DNS.2 = node142
DNS.3 = localhost
IP.1 = 192.168.0.142
IP.2 = 127.0.0.1
EOF

---

  • node143
더보기

---

sudo tee /opt/vault/tls/openssl.cnf << 'EOF'
[req]
default_bits = 4096
distinguished_name = req_distinguished_name
req_extensions = v3_req
prompt = no

[req_distinguished_name]
C = KR
ST = Incheon
L = Incheon
O = Vault
CN = vault.local

[v3_req]
keyUsage = keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1 = vault.local
DNS.2 = node143
DNS.3 = localhost
IP.1 = 192.168.0.143
IP.2 = 127.0.0.1
EOF

---

인증서 생성

sudo openssl req -x509 -nodes -newkey rsa:4096 \
  -keyout /opt/vault/tls/vault-key.pem \
  -out /opt/vault/tls/vault-cert.pem \
  -days 365 \
  -config /opt/vault/tls/openssl.cnf \
  -extensions v3_req

권한 설정

sudo chown -R vault:vault /opt/vault/tls
sudo chmod 600 /opt/vault/tls/vault-key.pem
sudo chmod 644 /opt/vault/tls/vault-cert.pem

Vault 설정 파일 생성

/etc/vault.d/vault.hcl(node141 기준)

sudo tee /etc/vault.d/vault.hcl << 'EOF'
ui = true

storage "consul" {
  address = "127.0.0.1:8500"
  path    = "vault/"
}

listener "tcp" {
  address     = "192.168.0.141:8200"
  tls_cert_file = "/opt/vault/tls/vault-cert.pem"
  tls_key_file  = "/opt/vault/tls/vault-key.pem"
}

log_level = "info"
log_file  = "/var/log/vault/"

api_addr = "https://192.168.0.141:8200"
cluster_addr = "https://192.168.0.141:8201"
EOF

node142

sed -i 's/192\.168\.0\.141/192.168.0.142/g' /etc/vault.d/vault.hcl

node143

sed -i 's/192\.168\.0\.141/192.168.0.143/g' /etc/vault.d/vault.hcl

파일 권한 설정(모든 노드)

sudo chown -R vault:vault /etc/vault.d
sudo chmod 640 /etc/vault.d/vault.hcl

Vault 설정 검증(유효성 검사)

vault server -config=/etc/vault.d/vault.hcl
==> Vault server configuration:

Administrative Namespace:
             Api Address: http://192.168.0.143:8200
                     Cgo: disabled
         Cluster Address: https://192.168.0.143:8201
   Environment Variables: HISTSIZE, HISTTIMEFORMAT, HOME, LANG, LESSCLOSE, LESSOPEN, LOGNAME, LS_COLORS, MAIL, OLDPWD, PATH, PS1, PWD, SHELL, SHLVL, TERM, TIMEOUT, USER, XDG_DATA_DIRS, _
              Go Version: go1.25.6
              Listener 1: tcp (addr: "192.168.0.143:8200", cluster address: "192.168.0.143:8201", disable_request_limiter: "false", max_json_array_element_count: "10000", max_json_depth: "300", max_json_object_entry_count: "10000", max_json_string_value_length: "1048576", max_request_duration: "1m30s", max_request_size: "33554432", tls: "disabled")
               Log Level: info
                   Mlock: supported: true, enabled: true
           Recovery Mode: false
                 Storage: consul (HA available)
                 Version: Vault v1.21.3, built 2026-02-03T14:56:30Z
             Version Sha: f4f0f4eb7f467bbc99ec89121e1d1ad9c3d78558

==> Vault server started! Log data will stream in below:

2026-02-10T12:03:46.768+0900 [INFO]  proxy environment: http_proxy="" https_proxy="" no_proxy=""
2026-02-10T12:03:46.778+0900 [INFO]  incrementing seal generation: generation=1
2026-02-10T12:03:46.963+0900 [INFO]  core: Initializing version history cache for core
2026-02-10T12:03:46.963+0900 [INFO]  events: Starting event system
^C
2026-02-10T12:03:49.008+0900 [INFO]  service_registration.consul: shutting down consul backend
==> Vault shutdown triggered
==> Vault server started!: 이 메시지가 떴다면 설정 파일(hcl) 로드에 성공하고 서버 프로세스가 점유되었다는 뜻입니다.

서비스 등록(모든 노드)

systemd 서비스 생성

sudo tee /etc/systemd/system/vault.service << 'EOF'
[Unit]
Description=Vault
Documentation=https://www.vaultproject.io/docs/
Requires=network-online.target
After=network-online.target consul.service
ConditionFileNotEmpty=/etc/vault.d/vault.hcl

[Service]
User=vault
Group=vault
ProtectSystem=full
ProtectHome=read-only
PrivateTmp=yes
PrivateDevices=yes
SecureBits=keep-caps
AmbientCapabilities=CAP_IPC_LOCK
CapabilityBoundingSet=CAP_SYSLOG CAP_IPC_LOCK
NoNewPrivileges=yes
ExecStart=/usr/local/bin/vault server -config=/etc/vault.d/vault.hcl
ExecReload=/bin/kill --signal HUP $MAINPID
KillMode=process
KillSignal=SIGINT
Restart=on-failure
RestartSec=5
TimeoutStopSec=30
LimitNOFILE=65536
LimitMEMLOCK=infinity

[Install]
WantedBy=multi-user.target
EOF

Vault 서비스 시작 및 활성화

sudo systemctl daemon-reload
sudo systemctl --now enable vault

상태 확인

Vault 서비스 상태

sudo systemctl status vault

Vault 초기화(node141에서만)

환경 변수 설정

export VAULT_ADDR='http://192.168.0.141:8200'

Vault 초기화

vault operator init -key-shares=5 -key-threshold=3 | sudo tee /root/vault_info.txt
Unseal Key 1: nw5hDaF+UcY1ZgeGLVpaeKZ2r9WO1kGYOldwqBWIfyuu
Unseal Key 2: /6vjAMgz7UdJwGVUZfz1iVLusvzMO2RrDOvg8pSdAO3z
Unseal Key 3: oR384IYlX92sf3K8kxEUjVwDwUGd0lKGIwCttRVkorpS
Unseal Key 4: b645WbRX4zLZ3enEg31YhaPIRCLX7gYd1IZ7ehHt1ONj
Unseal Key 5: Ly3zEVn5WfcZKZ8AOZmL6nKapiL2Sqc/zWoOM+XQ6aDS

Initial Root Token: hvs.2JkrW3kigeQX0YNlxNey5sda
...
중요: 출력되는 Unseal Keys와 Initial Root Token을 안전하게 보관하세요!

Vault Unseal(모든 노드)

각 노드에서 3개의 unseal key를 사용하여 unsealing을 수행합니다.



node141

export VAULT_ADDR='http://192.168.0.141:8200'
vault operator unseal <KEY1>
vault operator unseal <KEY2>
vault operator unseal <KEY3>
Key                    Value
---                    -----
Seal Type              shamir
Initialized            true
Sealed                 false
Total Shares           5
Threshold              3
Version                1.21.3
Build Date             2026-02-03T14:56:30Z
Storage Type           consul
Cluster Name           vault-cluster-5a307b22
Cluster ID             79014df7-e6f5-22e5-6ff1-a605e1fa3314
HA Enabled             true
HA Cluster             n/a
HA Mode                standby
Active Node Address    <none>

node142

export VAULT_ADDR='http://192.168.0.142:8200'
vault operator unseal <KEY1>
vault operator unseal <KEY2>
vault operator unseal <KEY3>
Key                    Value
---                    -----
Seal Type              shamir
Initialized            true
Sealed                 false
Total Shares           5
Threshold              3
Version                1.21.3
Build Date             2026-02-03T14:56:30Z
Storage Type           consul
Cluster Name           vault-cluster-5a307b22
Cluster ID             79014df7-e6f5-22e5-6ff1-a605e1fa3314
HA Enabled             true
HA Cluster             https://192.168.0.141:8201
HA Mode                standby
Active Node Address    http://192.168.0.141:8200

node143

export VAULT_ADDR='http://192.168.0.143:8200'
vault operator unseal <KEY1>
vault operator unseal <KEY2>
vault operator unseal <KEY3>
Key                    Value
---                    -----
Seal Type              shamir
Initialized            true
Sealed                 false
Total Shares           5
Threshold              3
Version                1.21.3
Build Date             2026-02-03T14:56:30Z
Storage Type           consul
Cluster Name           vault-cluster-5a307b22
Cluster ID             79014df7-e6f5-22e5-6ff1-a605e1fa3314
HA Enabled             true
HA Cluster             https://192.168.0.141:8201
HA Mode                standby
Active Node Address    http://192.168.0.141:8200

HA 상태 확인

환경 변수 설정

export VAULT_ADDR='http://192.168.0.141:8200'
export VAULT_TOKEN='hvs.2JkrW3kigeQX0YNlxNey5sda'

상태 확인

vault status
Key             Value
---             -----
Seal Type       shamir
Initialized     true
Sealed          false
Total Shares    5
Threshold       3
Version         1.21.3
Build Date      2026-02-03T14:56:30Z
Storage Type    consul
Cluster Name    vault-cluster-5a307b22
Cluster ID      79014df7-e6f5-22e5-6ff1-a605e1fa3314
HA Enabled      true
HA Cluster      https://192.168.0.141:8201
HA Mode         active
Active Since    2026-02-10T12:35:47.868054113+09:00
vault operator members
Host Name    API Address                  Cluster Address               Active Node    Version    Upgrade Version    Redundancy Zone    Last Echo
---------    -----------                  ---------------               -----------    -------    ---------------    ---------------    ---------
node141      http://192.168.0.141:8200    https://192.168.0.141:8201    true           1.21.3     n/a                n/a                n/a
node142      http://192.168.0.142:8200    https://192.168.0.142:8201    false          1.21.3     n/a                n/a                2026-02-10T12:40:53+09:00
node143      http://192.168.0.143:8200    https://192.168.0.143:8201    false          1.21.3     n/a                n/a                2026-02-10T12:40:52+09:00

클러스터 리더 확인

consul catalog services
consul
vault

방화벽 설정(선택)

# Consul 포트
sudo ufw allow 8300/tcp  # Server RPC
sudo ufw allow 8301/tcp  # Serf LAN
sudo ufw allow 8301/udp
sudo ufw allow 8302/tcp  # Serf WAN
sudo ufw allow 8302/udp
sudo ufw allow 8500/tcp  # HTTP API
sudo ufw allow 8600/tcp  # DNS
sudo ufw allow 8600/udp

# Vault 포트
sudo ufw allow 8200/tcp  # API
sudo ufw allow 8201/tcp  # Cluster

브라우저 접속 정보

Consul UI

http://192.168.0.141:8500/ui

Vault UI

http://192.168.0.141:8200/ui

Vault API

  • 모든 노드의 8200 포트

HA 클러스터 구성이 완료되었습니다.



참고URL

- consul releases : consul_1.22.3_linux_arm64.zip

- vault releases : vault_1.21.3_linux_amd64.zip



728x90
반응형
저작자표시 비영리 (새창열림)

'리눅스' 카테고리의 다른 글

우분투 24.04에서 TCP Wrappers를 사용하는 sshd 서비스를 접근 제어하는 방법  (0) 2026.02.03
Nginx 등록되지 않은 가상호스트를 차단 및 제한하는 방법  (0) 2026.02.03
CentOS 7에서 sg 드라이버가 로드되지 않았을 때 해결하는 방법  (0) 2026.01.30
CentOS 7에서 다운로드한 RPM 패키지 설치하는 방법  (0) 2026.01.22
HPE 서버 RAID 컨트롤러의 세대교체  (0) 2026.01.19

'리눅스' Related Articles

티스토리툴바
