HashiCorp Vault를 Docker 컨테이너로 설정하는 방법

HashiCorp Vault를 Docker 컨테이너로 설정하는 방법

테스트 환경

$ docker version --format '{{.Server.Version}}'
28.2.2

$ docker compose version
Docker Compose version v2.36.2

1. 디렉터리 구조 생성

mkdir -p ./vault/{config,file,logs}

chmod -R 755 ./vault

2. Vault 설정 파일 작성

vim vault/config/vault.json

{
  "storage": {
    "file": {
      "path": "/vault/file"
    }
  },
  "listener": [{
    "tcp": {
      "address": "0.0.0.0:8200",
      "tls_disable": true
    }
  }],
  "ui": true
}

3. docker-compose.yaml 파일 작성

vim docker-compose.yaml

services:
  vault:
    image: hashicorp/vault:latest
    container_name: vault
    restart: unless-stopped
    cap_add:
      - IPC_LOCK
    entrypoint: ["vault", "server", "-config=/vault/config/vault.json"]
    volumes:
      - ./vault/config:/vault/config
      - ./vault/file:/vault/file
      - ./vault/logs:/vault/logs
    ports:
      - "8200:8200"
    healthcheck:
      test: ["CMD", "vault", "status", "-address=http://127.0.0.1:8200"]
      interval: 30s
      timeout: 10s
      retries: 5

4. 컨테이너 실행

docker compose up -d

컨테이너 상태 확인

docker compose ps

로그 확인

docker compose logs -f vault

728x90

5. Vault 초기화 및 언실

docker compose exec vault sh

export VAULT_ADDR=http://127.0.0.1:8200

초기화(init 시 생성되는 키와 root token은 꼭 백업)

vault operator init | tee init_backup.txt

---

Unseal Key 1: aK0sqUsKov9pJ3a4wXEhnUC8CkKScA7XjlEy+0JdZyUB
Unseal Key 2: Jzk6qByqcFdqZYIMWcRS3rvUYRfI1TwXD3zmxIigyjen
Unseal Key 3: JUw5oLtA8qh6Myq5s5dCuzzBrol7Ohe7G1KRu3n/3Veg
Unseal Key 4: HnxytqkuqkBmF7KuMcKdvcSpBUtd9XiHB0qRy66wBqn8
Unseal Key 5: 9k1uxj5ErKrD5W4pAUuMERWhlb5jIfKHRNaWWyJ1iXjI

Initial Root Token: hvs.JIYu0JEuh1wUy6FEhQLwCrgs

Vault initialized with 5 key shares and a key threshold of 3. Please securely
distribute the key shares printed above. When the Vault is re-sealed,
restarted, or stopped, you must supply at least 3 of these keys to unseal it
before it can start servicing requests.

Vault does not store the generated root key. Without at least 3 keys to
reconstruct the root key, Vault will remain permanently sealed!

It is possible to generate new unseal keys, provided you have a quorum of
existing unseal keys shares. See "vault operator rekey" for more information.

---

언실(init 시 출력된 Unseal Key 3개 이상 사용)

vault operator unseal <Unseal Key 1>
vault operator unseal <Unseal Key 2>
vault operator unseal <Unseal Key 3>

상태 확인

vault status

Key             Value
---             -----
Seal Type       shamir
Initialized     true
Sealed          false
Total Shares    5
Threshold       3
Version         1.19.3
Build Date      2025-04-29T10:34:52Z
Storage Type    file
Cluster Name    vault-cluster-5183a175
Cluster ID      fa285447-8e82-3c14-c4c6-9ac2ebc0d298
HA Enabled      false

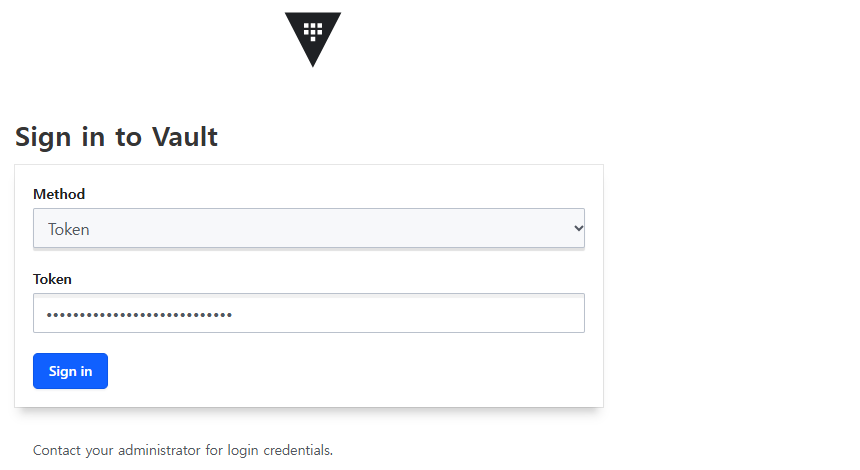

6. 웹 UI 접속

http://<호스트IP>:8200

초기화 시 받은 Root Token으로 로그인하면 됩니다.

vault web ui

스크립트

# 디렉토리 생성
mkdir -p ./vault/{config,file,logs}
chmod -R 755 ./vault

# Vault 설정 파일 작성
cat <<EOF > vault/config/vault.json
{
  "storage": {
    "file": {
      "path": "/vault/file"
    }
  },
  "listener": [{
    "tcp": {
      "address": "0.0.0.0:8200",
      "tls_disable": true
    }
  }],
  "ui": true
}
EOF

# Docker Compose 파일 작성
cat <<EOF > docker-compose.yaml
services:
  vault:
    image: hashicorp/vault:latest
    container_name: vault
    restart: unless-stopped
    cap_add:
      - IPC_LOCK
    environment:
      VAULT_ADDR: http://127.0.0.1:8200
    volumes:
      - ./vault/config:/vault/config
      - ./vault/file:/vault/file
      - ./vault/logs:/vault/logs
    entrypoint: ["vault", "server", "-config=/vault/config/vault.json"]
    ports:
      - "8200:8200"
    healthcheck:
      test: ["CMD", "vault", "status", "-address=http://127.0.0.1:8200"]
      interval: 30s
      timeout: 10s
      retries: 5
EOF

# Vault 컨테이너 시작
docker compose up -d

# 로그 확인
docker compose logs -f vault

# Vault 초기화
docker compose exec vault sh -c 'export VAULT_ADDR=http://127.0.0.1:8200 && vault operator init'
