우분투에서 Elasticsearch를 설치하고 Kibana를 사용하여 클러스터 상태를 확인하는 방법

우분투에서 Elasticsearch를 설치하고 Kibana를 사용하여 클러스터 상태를 확인하는 방법(elasticsearch 8.12.1)

운영체제 환경설정

• Limits 설정

• File Descriptors
• Locked in Memory
• Number of Threads

cat << EOF >> /etc/security/limits.conf

### elasticsearch
elasticsearch       hard    nofile   65535
elasticsearch       soft    nofile   65536
elasticsearch       hard    nproc    65536
elasticsearch       soft    nproc    65536
elasticsearch       hard    memlock  unlimited
elasticsearch       soft    memlock  unlimited
EOF

• Virtual Memory

echo "vm.max_map_count = 262144" | sudo tee -a /etc/sysctl.conf

• Swap 사용 안 함

echo "vm.swappiness = 1" | sudo tee -a /etc/sysctl.conf

sudo sysctl -p

• Disable swapping

sudo swapoff -a

sudo sed -i '/swap/ s/^/#/' /etc/fstab

Elasticsearch, Kibana 삭제

---

sudo apt-get purge -y --allow-change-held-packages elasticsearch

sudo rm -rf /etc/elasticsearch /var/lib/elasticsearch

sudo rm -rf /etc/default/elasticsearch /usr/share/doc/elasticsearch /var/log/elasticsearch

sudo apt-get purge -y --allow-change-held-packages kibana

sudo rm -rf /etc/kibana /var/lib/kibana

sudo apt-get autoremove -y

---

Elasticsearch 설치

sudo apt-get install -y apt-transport-https

GPG 키 추가

wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo gpg --dearmor -o /usr/share/keyrings/elasticsearch-keyring.gpg

Elasticsearch 저장소 추가

echo "deb [signed-by=/usr/share/keyrings/elasticsearch-keyring.gpg] https://artifacts.elastic.co/packages/8.x/apt stable main" | sudo tee /etc/apt/sources.list.d/elastic-8.x.list

APT 저장소 업데이트

sudo apt-get update

Elasticsearch 패키지 설치

sudo apt-get install -y elasticsearch

--------------------------- Security autoconfiguration information ------------------------------

Authentication and authorization are enabled.
TLS for the transport and HTTP layers is enabled and configured.

The generated password for the elastic built-in superuser is : IT-FMSfCEhw+1_W+vHsz

If this node should join an existing cluster, you can reconfigure this with
'/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
after creating an enrollment token on your existing cluster.

You can complete the following actions at any time:

Reset the password of the elastic built-in superuser with
'/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.

Generate an enrollment token for Kibana instances with
 '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.

Generate an enrollment token for Elasticsearch nodes with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.

-------------------------------------------------------------------------------------------------
### NOT starting on installation, please execute the following statements to configure elasticsearch service to start automatically using systemd
 sudo systemctl daemon-reload
 sudo systemctl enable elasticsearch.service
### You can start elasticsearch service by executing
 sudo systemctl start elasticsearch.service

built-in superuser(elastic)의 비밀번호를 셸에 환경 변수로 저장

export ELASTIC_PASSWORD="IT-FMSfCEhw+1_W+vHsz"

echo $ELASTIC_PASSWORD

elasticsearch.service 설정 파일 편집

vim /usr/lib/systemd/system/elasticsearch.service

[Service]
LimitMEMLOCK=infinity

Elasticsearch 설정 파일 편집(/etc/elasticsearch/elasticsearch.yml)

vim /etc/elasticsearch/elasticsearch.yml

#cluster.name: my-application

#node.name: node1

path.data: /var/lib/elasticsearch

path.logs: /var/log/elasticsearch

bootstrap.memory_lock: true

#network.host: 192.168.0.1

http.port: 9200

#discovery.seed_hosts: ["node1", "node2", "node3"]

xpack.security.enabled: true

xpack.security.enrollment.enabled: true

xpack.security.http.ssl:
  enabled: true
  keystore.path: certs/http.p12

xpack.security.transport.ssl:
  enabled: true
  verification_mode: certificate
  keystore.path: certs/transport.p12
  truststore.path: certs/transport.p12

cluster.initial_master_nodes: ["node1"]
#cluster.initial_master_nodes: ["node1", "node2", "node3"]

http.host: 0.0.0.0

Elasticsearch 서비스 시작 및 활성화

sudo systemctl daemon-reload

sudo systemctl --now enable elasticsearch.service

Elasticsearch 서비스 재시작/중지

sudo systemctl restart elasticsearch.service

sudo systemctl stop elasticsearch.service

Elasticsearch 상태 확인

sudo systemctl status elasticsearch

Elasticsearch API 사용

Elasticsearch API를 통해 클러스터 상태를 확인

curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200

$ curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200

{
  "name" : "node1",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "Qr4VeMmnSWaEa2chrR2KTA",
  "version" : {
    "number" : "8.12.1",
    "build_flavor" : "default",
    "build_type" : "deb",
    "build_hash" : "6185ba65d27469afabc9bc951cded6c17c21e3f3",
    "build_date" : "2024-02-01T13:07:13.727175297Z",
    "build_snapshot" : false,
    "lucene_version" : "9.9.2",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

Cluster Health 확인

curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200/_cluster/health?pretty

$ curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200/_cluster/health?pretty
{
  "cluster_name" : "elasticsearch",
  "status" : "green",
  "timed_out" : false,
  "number_of_nodes" : 1,
  "number_of_data_nodes" : 1,
  "active_primary_shards" : 1,
  "active_shards" : 1,
  "relocating_shards" : 0,
  "initializing_shards" : 0,
  "unassigned_shards" : 0,
  "delayed_unassigned_shards" : 0,
  "number_of_pending_tasks" : 0,
  "number_of_in_flight_fetch" : 0,
  "task_max_waiting_in_queue_millis" : 0,
  "active_shards_percent_as_number" : 100.0
}

클러스터 통계 정보 확인

curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200/_cluster/stats?pretty

노드 정보 확인

curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200/_cat/nodes?v

$ curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200/_cat/nodes?v
ip        heap.percent ram.percent cpu load_1m load_5m load_15m node.role   master name
127.0.0.1           26          97   0    0.07    0.27     0.23 cdfhilmrstw *      node1

인덱스 정보 확인

curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic:$ELASTIC_PASSWORD https://localhost:9200/_cat/indices?pretty

built-in superuser 비밀번호 재설정

/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic

$ /usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic
This tool will reset the password of the [elastic] user to an autogenerated value.
The password will be printed in the console.
Please confirm that you would like to continue [y/N]y


Password for the [elastic] user successfully reset.
New value: iD9rnfktinzuE7qD=uwb

---

Kibana 인스턴스에 등록 토큰 생성

/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana

Elasticsearch 노드 등록 토큰 생성

/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node

http.p12의 비밀번호 확인

/usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.http.ssl.keystore.secure_password

transport.p12의 비밀번호 확인

/usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.transport.ssl.keystore.secure_password

---

Kibana 설치

Kibana 패키지 설치

sudo apt-get install -y kibana

Kibana 암호화 키를 생성

/usr/share/kibana/bin/kibana-encryption-keys generate

$ /usr/share/kibana/bin/kibana-encryption-keys generate
## Kibana Encryption Key Generation Utility

The 'generate' command guides you through the process of setting encryption keys for:

xpack.encryptedSavedObjects.encryptionKey
    Used to encrypt stored objects such as dashboards and visualizations
    https://www.elastic.co/guide/en/kibana/current/xpack-security-secure-saved-objects.html#xpack-security-secure-saved-objects

xpack.reporting.encryptionKey
    Used to encrypt saved reports
    https://www.elastic.co/guide/en/kibana/current/reporting-settings-kb.html#general-reporting-settings

xpack.security.encryptionKey
    Used to encrypt session information
    https://www.elastic.co/guide/en/kibana/current/security-settings-kb.html#security-session-and-cookie-settings


Already defined settings are ignored and can be regenerated using the --force flag.  Check the documentation links for instructions on how to rotate encryption keys.
Definitions should be set in the kibana.yml used configure Kibana.

Settings:
xpack.encryptedSavedObjects.encryptionKey: 5755be1116bc378d6c29b7550fbc6328
xpack.reporting.encryptionKey: 23bcb72e36e5accc10684250e4afcebf
xpack.security.encryptionKey: a3ce55b61a9a854a3d4f3a8cbf9a6cb0

cat <<EOF >> /etc/kibana/kibana.yml

## Kibana Encryption Key Generation Utility
xpack.encryptedSavedObjects.encryptionKey: 5755be1116bc378d6c29b7550fbc6328
xpack.reporting.encryptionKey: 23bcb72e36e5accc10684250e4afcebf
xpack.security.encryptionKey: a3ce55b61a9a854a3d4f3a8cbf9a6cb0
EOF



/usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.http.ssl.keystore.secure_password

$ /usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.http.ssl.keystore.secure_password
u9lrFpvPRWC49w2lHVZCPA



mkdir /etc/kibana/certs

cd /etc/kibana/certs

cp /etc/elasticsearch/certs/http_ca.crt /etc/kibana/certs/.

cp /etc/elasticsearch/certs/http.p12 /etc/kibana/certs/.

openssl pkcs12 -in http.p12 -cacerts -nokeys -out CA.pem -passin pass:u9lrFpvPRWC49w2lHVZCPA

openssl pkcs12 -in http.p12 -nocerts -nodes -out client.key -passin pass:u9lrFpvPRWC49w2lHVZCPA

openssl pkcs12 -in http.p12 -clcerts -nokeys -out client.crt -passin pass:u9lrFpvPRWC49w2lHVZCPA

chown -R kibana.kibana /etc/kibana/certs



/usr/share/elasticsearch/bin/elasticsearch-reset-password -i -u kibana_system

$ /usr/share/elasticsearch/bin/elasticsearch-reset-password -i -u kibana_system
This tool will reset the password of the [kibana_system] user.
You will be prompted to enter the password.
Please confirm that you would like to continue [y/N]y


Enter password for [kibana_system]:
Re-enter password for [kibana_system]:
Password for the [kibana_system] user successfully reset.



Kibana 설정 파일 편집(/etc/kibana/kibana.yml)

vim /etc/kibana/kibana.yml

server.port: 5601

server.host: "0.0.0.0"

elasticsearch.hosts: ["https://localhost:9200"]

elasticsearch.username: "kibana_system"
elasticsearch.password: "kibana_system_password"

elasticsearch.ssl.certificate: /etc/kibana/certs/client.crt
elasticsearch.ssl.key: /etc/kibana/certs/client.key

elasticsearch.ssl.certificateAuthorities: [ "/etc/kibana/certs/CA.pem" ]

elasticsearch.ssl.verificationMode: full

logging:
  appenders:
    file:
      type: file
      fileName: /var/log/kibana/kibana.log
      layout:
        type: json
  root:
    appenders:
      - default
      - file

pid.file: /run/kibana/kibana.pid

xpack.encryptedSavedObjects.encryptionKey: 5755be1116bc378d6c29b7550fbc6328
xpack.reporting.encryptionKey: 23bcb72e36e5accc10684250e4afcebf
xpack.security.encryptionKey: a3ce55b61a9a854a3d4f3a8cbf9a6cb0



sudo systemctl daemon-reload

sudo systemctl --now enable kibana.service



sudo systemctl restart kibana

sudo systemctl status kibana

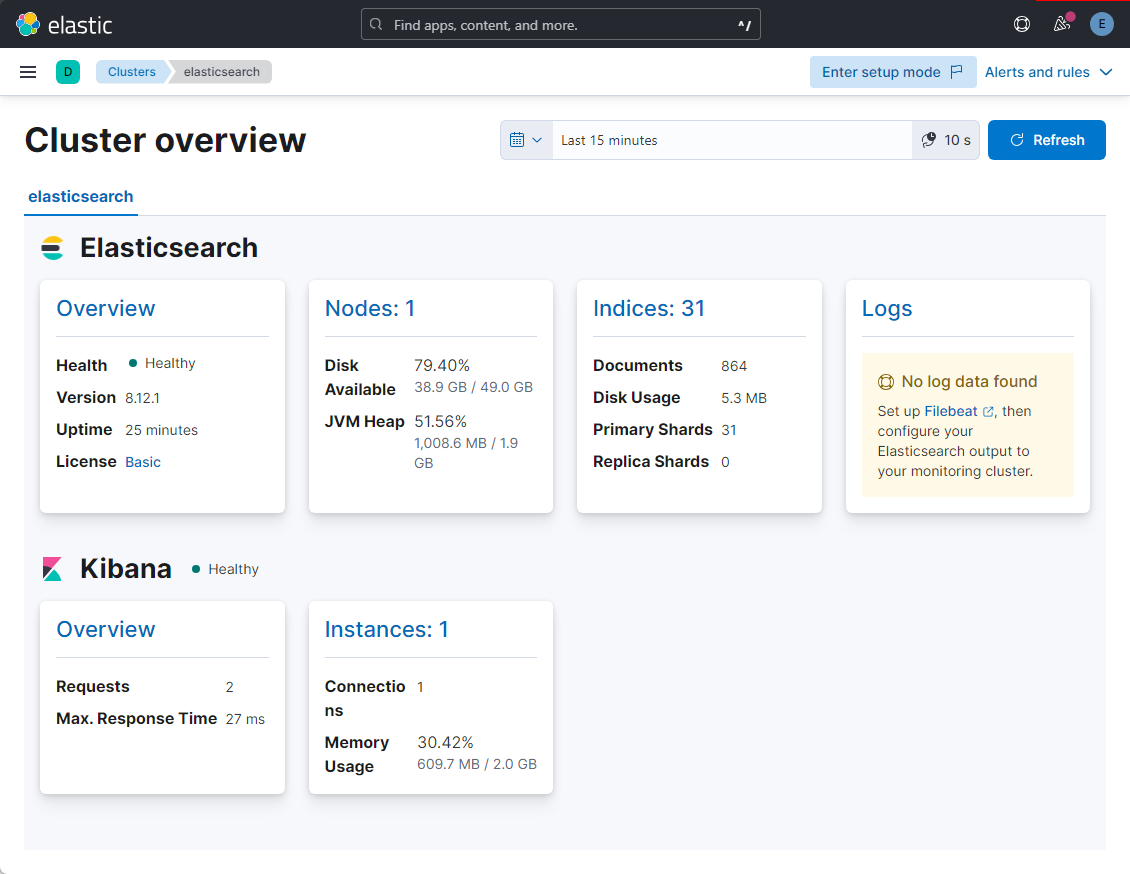

Kibana 웹 브라우저에서 확인(웹 브라우저)

http://localhost:5601

Kibana



참고URL

- elasticsearch guide : Install Elasticsearch with Debian Package

- kibana guide : Install Kibana with Debian package
